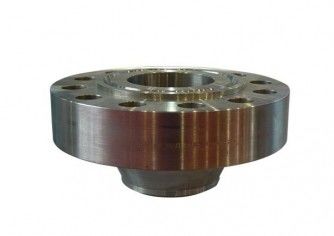

High Pressure RTJ Metal Flange API 6A Type 6B Blind / Welding Neck Flange 13.8Mpa (2000psi)
API6A flanges are designed to join pipes together, increase support strength, or block off a pipeline.
API 6A Flange is used to produce flanges of high temperature service with high strength to be used in oil and explosive gas applications. Due to the nature of the applications, this material has high temperature resistance, high pressure resistance, high corrosion resistance and high strength as well. API 6A 10000 Psi Flange Dimension ranges from 1 13/16 inches to 21 1/4inches in diameter.
| Size | B | OD | C | E1 | Q (MAX.) |
G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | Ring Number |
| Bx | |||||||||||||||||
| 1 13/16" | 46.8 | 185 | 3 | - | 5.56 | 77.77 | 105 | 42.1 | 88.9 | 65.1 | 48.5 | - | 10 | 146.1 | 8 | 23 | 151 |
| 2 1/16" | 53.2 | 200 | 3 | - | 5.95 | 86.23 | 111 | 44.1 | 100 | 74.7 | 51.6 | - | 10 | 158.8 | 8 | 23 | 152 |
| 2 9/16" | 65.9 | 230 | 3 | - | 6.75 | 102.77 | 132 | 51.2 | 120.7 | 92.1 | 57.2 | - | 10 | 184.2 | 8 | 26 | 153 |
| 3 1/16" | 78.6 | 270 | 3 | - | 7.54 | 119 | 152 | 58.4 | 142.1 | 110.2 | 63.5 | - | 10 | 215.9 | 8 | 29 | 154 |
| 4 1/16" | 104 | 315 | 3 | - | 8.33 | 150.62 | 185 | 70.3 | 182.6 | 146.1 | 73.1 | - | 10 | 258.8 | 8 | 32 | 155 |
| 5 1/8" | 131 | 360 | 3 | 9.5 | 9.53 | 176.66 | 221 | 79.4 | 223.8 | 182.6 | 81 | 6.4 | 10 | 300 | 12 | 32 | 169 |
| 7 1/16" | 180.2 | 480 | 6 | 11.1 | 11.11 | 241.83 | 302 | 103.2 | 301.6 | 254 | 95.3 | 9.7 | 16 | 403.2 | 12 | 42 | 156 |
| 9" | 229.4 | 550 | 6 | 12.7 | 12.7 | 299.06 | 359 | 123.9 | 374.7 | 327.1 | 93.7 | 9.7 | 16 | 476.3 | 16 | 42 | 157 |
| 11" | 280.2 | 655 | 6 | 14.3 | 14.29 | 357.23 | 429 | 141.3 | 450.9 | 400.1 | 103.2 | 14.2 | 16 | 565.2 | 16 | 48 | 158 |
| 13 5/8" | 346.9 | 770 | 6 | 15.9 | 15.88 | 432.64 | 518 | 168.3 | 552.5 | 495.3 | 114.3 | 17.5 | 16 | 673.1 | 20 | 51 | 159 |
| 16 3/4" | 426.2 | 870 | 6 | 8.3 | 8.33 | 478.33 | 576 | 168.3 | 655.6 | 601.7 | 76.2 | 30.2 | 19 | 776.3 | 24 | 51 | 162 |
| 18 3/4" | 477 | 1040 | 6 | 18.3 | 18.26 | 577.9 | 697 781 |
223.1 | 752.5 | 674.7 | 155.6 | 25.4 | 16 | 925.5 | 24 | 61 | 164 |
| 21 1/4" | 540.5 | 1145 | 6 | 19.1 | 19.05 | 647.88 | 241.3 | 847.7 | 762 | 165.1 | 31.8 | 21 | 1022.4 | 24 | 67 | 166 |
| Size | 2000psi(2 1/16" up to 21 1/4"), 3000psi(2 1/16" up to 20 3/4" ), 5000psi(2 1/16" up to 11"), 10000psi(1 13/16" up to 21 1/4"), 15000psi(1 13/16" up to 18 3/4"), 20000psi(1 13/16" up to 13 5/8") |
| Pressure | 2000psi, 3000psi, 5000psi, 10000psi, 15000psi, 20000psi |
| Standard | API 6A - TYPE - 6BX |
| Wall thickness | customized |
| Material |
Stainless steel: A182F304/304L, A182 F316/316L, A182F321, A182F310S, A182F347H, A182F316Ti, 317/317L, 904L, 1.4301, 1.4307, 1.4401, 1.4571,1.4541, 254Mo and etc. Carbon steel: A105, A350LF2, S235Jr, S275Jr, St37, St45.8, A42CP, A48CP, E24 , A515 Gr60, A515 Gr 70 etc. |
|
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc. Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc. |
|
|
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,C22, C-276, Monel400, Alloy20 etc. Cr-Mo alloy: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3,15Crmo, etc. |
|
| Application | Petrochemical industy;avation and aerospace industry;pharmaceutical industry;gas exhaust;power plant;ship buliding;water treament,etc. |
|
|
