| Brand Name: | FLRS or OEM |
| Model Number: | FRC-009 |
| MOQ: | 5 piece |
| Packaging Details: | carton/ plywood cases/plywood pallets |
| Payment Terms: | Western Union, T/T, L/C |

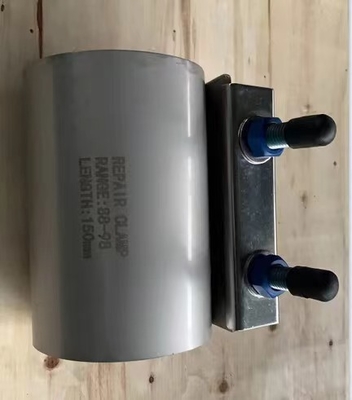

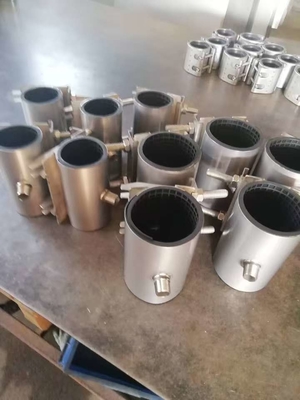

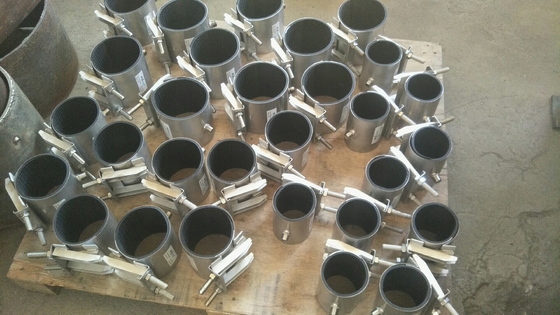

Pipe Clamp Single Plate-Type With Stainless Steel Material For Straight Pipes
It is mainly suitable for quick repair of the leakage for straight pipes.Leaking stoppage works can be done with the pressure and without the welding.It's away from the fire and explosion hazard.The special design of the internal grid double-arc rubber plate and its shell lengthened the repair size.The repair pipes have a wide range of diameters,low requirements for pipelines arc but strong generality.It is especially suitable for those working conditions such as continuous leakage caused by the aging and corrosion of the pipelines,longer damaged cracks,non-standard outer diameter of the pipelines and special calibers.It is installed quickly and conveniently,cost-saving and high cost-effectiveness.
Product Specification:
| 适用管径 Applicable Pipes Diameter |
工业允用压力 Allowable Pressure of Industry |
长度范围 Length Range |
螺 栓 Bolt |
扭 矩 Torque |
| ODmin-ODmax(mm) | WP(bar) | S(MM) | M | NM |
| 59-67 | 1.6 | 150mm-600mm |
12 | 50 |
| 65-73 | 1.6 | 150mm-600mm | 12 | 50 |
| 69-76 | 1.6 | 150mm-600mm | 12 | 50 |
| 75-83 | 1.6 | 150mm-600mm | 12 | 50 |
| 86-94 | 1.6 | 150mm-600mm | 14 | 80 |
| 108-118 | 1.6 | 150mm-600mm | 14 | 80 |
| 113-121 | 1.6 | 150mm-600mm | 14 | 80 |
| 121-131 | 1.6 | 150mm-600mm | 14 | 80 |
126-136 |
1.6 | 150mm-600mm | 14 | 80 |
| 132-142 | 1.6 | 150mm-600mm | 14 | 80 |
| 145-155 | 1.6 | 150mm-600mm | 14 | 80 |
| 151-161 | 1.6 | 150mm-600mm | 14 | 80 |
| 159-170 | 1.6 | 150mm-600mm | 14 | 80 |
| 166-177 | 1.6 | 150mm-600mm | 14 | 80 |
| 170-180 | 1.6 | 150mm-600mm | 14 | 80 |
| 174-184 | 1.6 | 150mm-600mm | 14 | 80 |
179-189 |
1.6 | 150mm-600mm | 14 | 80 |
| 189-199 | 1.6 | 150mm-600mm | 14 | 80 |
| 218-228 | 1.6 | 150mm-600mm | 16 | 100 |
| 222-233 | 1.0 | 150mm-600mm | 16 | 100 |
| 229-239 | 1.0 | 150mm-600mm | 16 | 100 |
| 236-246 | 1.0 | 150mm-600mm | 16 | 100 |
248-258 |
1.0 | 150mm-600mm | 16 | 100 |
| 250-260 | 1.0 | 150mm-600mm | 16 | 100 |
| 252-263 | 1.0 | 150mm-600mm | 16 | 100 |
| 261-271 | 1.0 | 150mm-600mm | 16 | 100 |
| 271-281 | 1.0 | 150mm-600mm |
16 | 100 |
| 280-291 | 1.0 | 150mm-600mm | 16 | 100 |
| 288-298 | 1.0 | 150mm-600mm | 16 | 100 |
| 298-309 | 1.0 | 150mm-600mm | 16 | 120 |
300-310 |
1.0 | 150mm-600mm |
16 | 120 |
| 304-314 | 1.0 | 150mm-600mm | 16 | 120 |
| 321-331 | 1.0 | 150mm-600mm | 16 | 120 |
| 333-343 | 1.0 | 150mm-600mm | 16 | 120 |
| 340-351 | 1.0 | 150mm-600mm | 16 | 120 |
| 348-358 | 1.0 | 150mm-600mm | 16 | 120 |
| 356-366 | 1.0 | 150mm-600mm | 16 | 120 |
Applications:
Pipeline repair in the fields such as shipping,oil field,chemical industry,water supply and drainage,factory,mines,fire-fighting,natural gas,,electric power,mechanical equipment,home etc.
|
|
